02-GLARRY BURNING FIRE
*= CUSTOM PART / FITTING / ORIGINAL CHROME PARTS KEPT
MAKE: GLARRY
MODEL: BURNING FIRE
SERIES:
SERIAL NUMBER: N/A
YEAR BUILT:
STRING COUNT: 6
TUNING: DROP D D/A/D/G/B/E
BRIDGE: Tremolo
PICKUPS: humbuker / single / humbucker HH-H-HH
LAYOUT: Double Hum-bucking HH-HH
PICKUP SELECTION SWITCH: 5 WAY 1. NECK 2. NECK/MIDDLE 3.MIDDLE 4. MIDDLE/TAIL 5.TAIL
TUNER / MACHINE HEADS: ORIGINALS REPLACED WITH AFTER MARKET LOCKING TUNERS*
MADE IN: CHINA
FRET SIZE: 24 648mm
STRINGS FITTED: 26/02/21 – Ernie Ball – Hybrid Slinky -2222 9, 11, 16, 26, 36, 46
BODY. BLACK
HEADSTOCK: BLACK FRONT SIDE (DECAL ADDED 20/10/21. BAPHOMET PENTAGRAM *
NECK: Bolt-on / Nec Tite System Added 25/02/21*
NECK WOOD: Maple
FRET BOARD WOOD: Rosewood
BODY WOOD: Solid Body, Basswood
BOUGHT NEW: 23/12/20

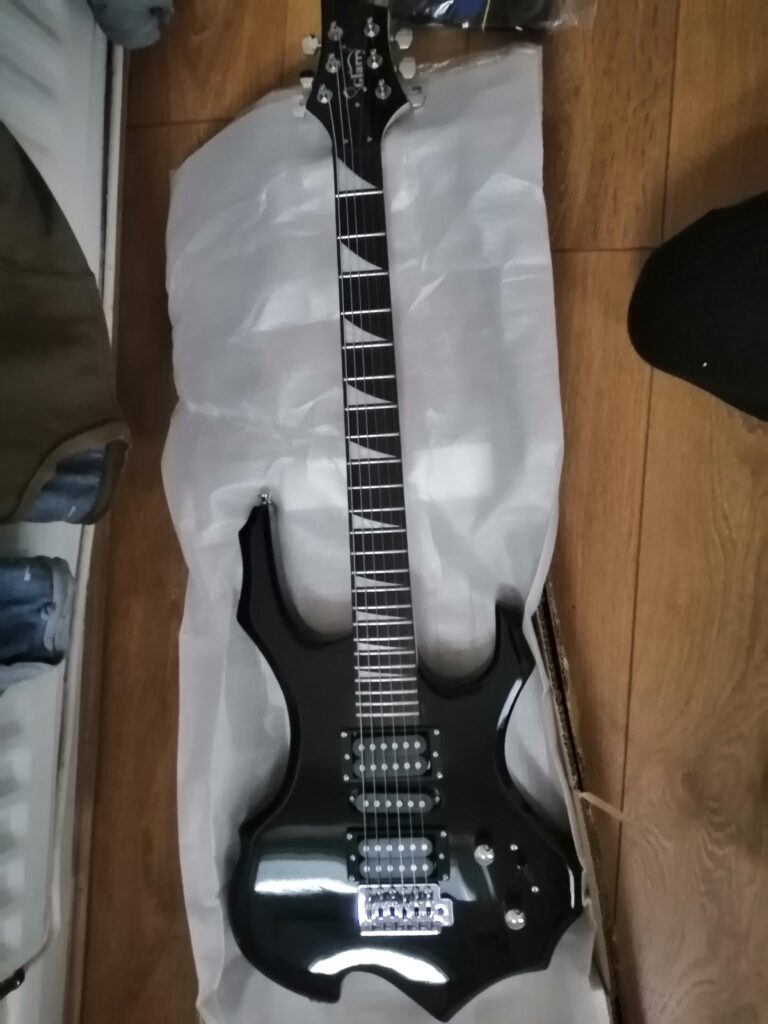

Always a good day when a new guitar arrives. The unboxing.
New original condition. Problems keeping in tune when using tremolo. Needs new locking tuners and neck bolt fittings strengthening.
Original neck bolt holes poorly drilled at factory, right top bolt off centre.
Original neck bolt hole on top right is bigger than rest too.
Filled top right neck bolt hole, and re drilled.
Re-drilled neck bolt holes ready for the nec tite threaded bolt fitting.
nec tite system installed and checking bolt depth.
Finding right centre for decal.
Face down on hard surface, draw holes for machine heads.
Also draw around head-stock for cut out line.
Apply fret-board hydration & give it some time to soak in while adding decal.
Find centre for truss rod cover decal cut out and draw around.
Always double check before cutting.
Clean all head-stock ready for decal.
Clean off excess hydration fluid.
Clean up edges of decal with scalpel and rub on with clean cloth to ensure edges don’t peel.
Cut out truss rod cover on decal & Apply ensuring everything is in centre.
Holes cut with scalpel ready for machine heads fitting.
Apply decal & smooth out any
bubbles with card.
New Machine heads laid out after testing threads match with sleeves.
New locking Machine Head close up.
Added a drop of glue to tuning head sleeves to keep them secure.
Add sleeves first, this way will avoid pushing decal off when fitting machine heads. Washers help keep decal edges in place.
New tuning head screws fit into original holes, avoiding multiple hole locations, keeps things tidy.
New after market locking tuners fitted to help cure tuning issues with termolo.
New machine heads after installation.
Finished headstock. New strings with decal.
Finished for now, going to install new pickups, metal pickup guards & replace chrome parts with Black. Holds tune great now. Tuned to drop D on 9-46 Gauge strings.
