01-IBANEZ GAX70 GIO
*= CUSTOM PART / FITTING / ORIGINAL PARTS KEPT
MAKE: IBANEZ
MODEL: GAX70
SERIES: GIO
SERIAL NUMBER: 40511665
YEAR BUILT:
STRING COUNT: 6
TUNING: DROP D D/A/D/G/B/E
BRIDGE: Fixed / Stop-tail (Black added 24/11/21)
PICKUPS: IBANEZ Double Hum-bucking / Pick up guards replaced with metal in black (24/11/21).
LAYOUT: Double Hum-bucking HH-HH
PICKUP SELECTION SWITCH: 3 WAY 1. NECK 2. NECK/TAIL 3. TAIL / Tone & volume dials replaced with metal in black (24/11/21).
MADE IN CHINA
FRET SIZE: 22 /medium 628mm
STRINGS FITTED: 24/10/21 – D’Addario EXL 110-B25 Nickel Wound, 10/13/17/26/36/46
BODY. BLACK, DECAL ADDED 20/10/21. SLIVER 13 *
HEADSTOCK: BLACK FRONT SIDE (DECAL ADDED 20/10/21. RED/ORANGE NUN) *
NECK: BUILD #7 Bolt-on / Nec Tite System (Added 31/10/21 to add extra strength for Drop D & Heavier strings) *
NECK WOOD: One Piece Maple
FRET BOARD WOOD: Rosewood Solid
BODY WOOD: Basswood
BOUGHT NEW: 05/04/10
IBANEZ GAX70 GIO – original
Headstock final look. Restring date 31/0ct/21.
Changed Dials – Steal / Black*
Stripped all parts ready for cleaning.
Replaced tone & volume dials with metal ones in black*.
Drilled Neck Bolt Holes out to 6.5mm
Original Neck Bolt Holes
After fitting the Nec Tite threaded nut, test the bolts are right length.
Print is Illegible
Removed tuning / machine heads
to find Ibanez mounting stud not screws. Would like black machine heads. Anyone know where i can get some good quality ones with this fitting?
28/04/2009? someone went mad with date stamp.
Neck build number 7
Redrilled Neck Bolt Holes on body, ready to fit new NecTite Bolts.
Replaced Neck Plate for a after
market Black and refitted the neck.
really strong feel to the neck now
and allows better control over the truss rod changes.
After Leon oil 1st clean
After Leon oil 2nd clean
Fret board Before Hydration.
Fret board After Hydration. Replaced original plastic Pickup Covers with Black Steel After market
Full stage clean of Head-stock and decal added from
Replaced Strap Nuts with Aftermarket Black.*
Wiped clean sticker area and added the decal to body.
Looks Cool.

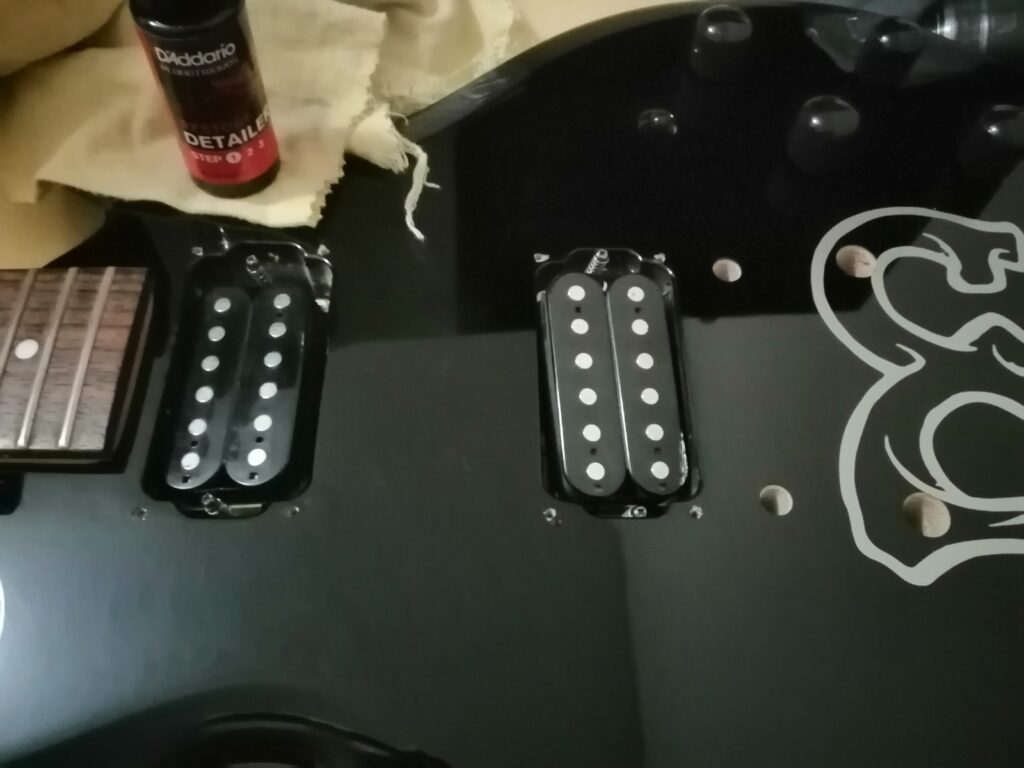

Stage#1 Restore Detail on all paint.

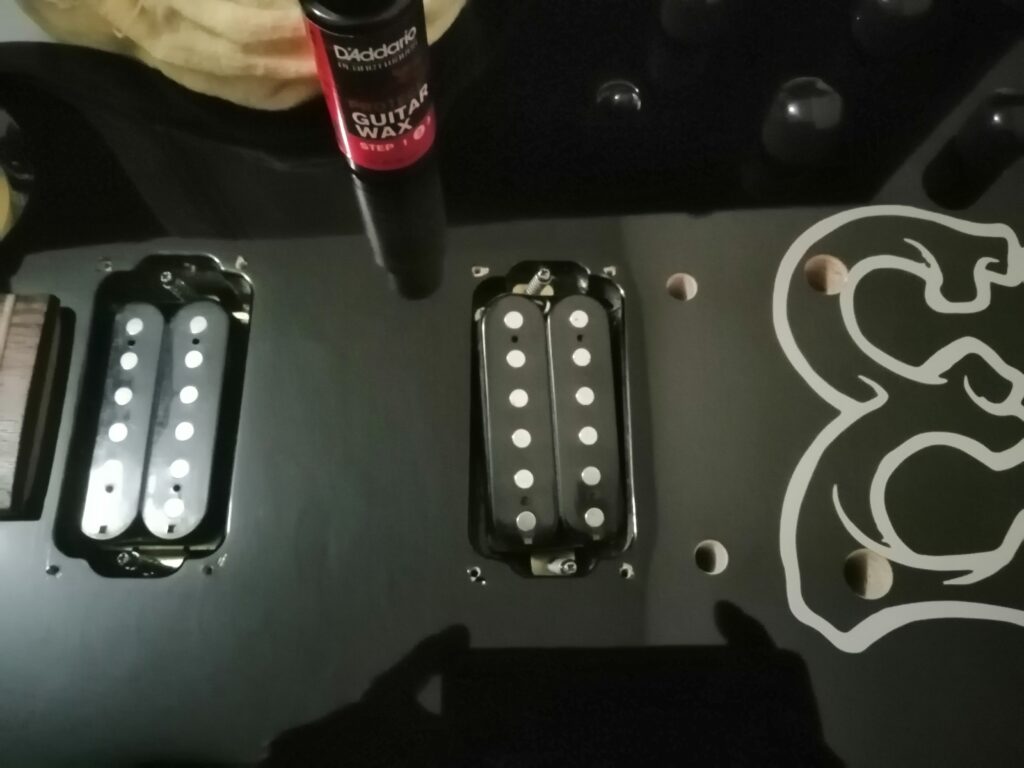

Stage#2 Protect all paint With Guitar Wax.
Checked all wiring solder connections.
Reglued jack connection to isolate better.
Glued mounting depth screw in place & added an new black jack-plug output plate.
New Tune-O-Matic bridge arrived.
Replaced pick up guards with
metal ones in black*.
Re drilled holes to accommodate
the wider bridge housings.
Used masking tape to prevent as much paint chipping as possible.
12mm drill bit, new threaded housings
are about 12.5mm.
Good tight fit, no movement.
New strings 10-46 D’Addario fitted & tuned to Drop D,
and full setup.
Finished.
After Market Parts List:
Tune-O-Matic Bridge & Stop Tail Bar For LP Electric Guitar
https://www.ebay.co.uk/itm/154508189817?var=454582369835
10 Sets Electric Guitar Nuts Washers Gaskets Input Output Nut 9mm Black
https://www.ebay.co.uk/itm/294275181918
http://nectite.com/
M12 Thread Pickup Selector Nut/Washer Set For Electric Guitar – Black
https://www.ebay.co.uk/itm/373379675632
Oval recessed guitar input socket jack plate in black, inc screws
https://www.ebay.co.uk/itm/370544614417?var=640015710601
Set of Guitar Machine head / tuner ferrules, bushing screw + washers and screws
https://www.ebay.co.uk/itm/373616563417?var=642625669717
Metal humbucker pickup guitar surround plates chrome black flat top
https://www.ebay.co.uk/itm/390348158517?var=660037619155
DARK RELIGIOUS ZOMBIE NUN BLOOD CRUCIFIX TATTOO ROSARY NECKLACE VINYL STICKER A6
https://www.ebay.co.uk/itm/192297018794
Skull Bone unlucky 13 Vinyl Decal Sticker for Car Wall Laptop Bumper Silver
https://www.ebay.co.uk/itm/143899721589
